THE WIRE IS EQUIVALENT TO M22759/28.
这款电线等同于M22759/28.
This wire has an extruded polytetrafluoroethylene (PTFE) insulation with a polyimide hard coat for increased cut-through and abrasion resistance. Commonly used in Mil-Spec and Aerospace applications requiring excellent thermal stability, tight dimensional tolerances, and high reliability.
该航空导线采用PTFE挤出和氟树脂涂覆（PTFE或FEP）聚酰亚胺薄膜绕包绝缘，聚酰亚胺强化了绝缘的耐穿透性和耐刮擦性。通常用于要求优异的热稳定性、严格的外径偏差和高可靠性的军用规格和航空航天应用。
It is designed for the harshest environments and extreme conditions .This wire may be used in commercial or military aircraft where wire applications must adhere to certain restrictions and specifications. Our high-performance wire meets requirements for small dimensions, high-temperature resistance, low weight, and low flame propagation.
该导线专为恶劣环境和极端条件而设计。可用于那些对电线的使用坚持严格要求和规范的商用或军用飞机。我们的“PTFE挤出+ 聚酰亚胺绕包”高性能电线满足小尺寸、耐高温、轻量化、抗冲击、耐刮擦和低火焰传播的要求。

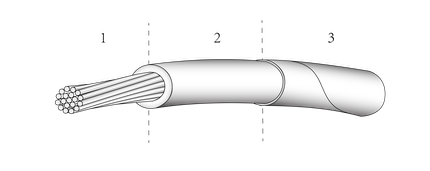

【STRUCTURE/ 结构】
----------------------------------------------------------------------------------------------------------------------
Conductor/ 导体
electrolytic silver plated annealed copper
退火镀银电解铜
Insulation/ 绝缘
PTFE extrusion and FP/Polyimide composited tape
PTFE挤出和氟树脂涂覆（PTFE或FEP）聚酰亚胺薄膜带绕包并烧结
【DESCRIBE/ 产品简介】
----------------------------------------------------------------------------------------------------------------------
- Insulation: PTFE extrusion and polytetrafluoroethylene/ Polyimide composite tape
- 绝缘：PTFE挤出+氟树脂涂覆（PTFE或FEP）聚酰亚胺复合薄膜绕包烧结
- Operating temperature: -90 ~ +200°C
- 工作温度：-90 ~ +200°C
- Voltage rating: 600 Volts AC
- 额定电压：交流600伏
- Wall thickness: 0.23 ～0.37 mm
- 绝缘壁厚：0.23 ～ 0.37 mm
- Standard colors: Black, Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, other colors upon request( only upon PTFE extrusion) .
- 标准颜色：黑、棕、红、橙、黄、绿、蓝、紫、灰、白，可按要求定制（仅仅针对PTFE挤出层）
- Standard multicore: twisted pairs, twisted triples, twisted quads, etc.
- 多芯电缆：双绞线、三芯绞合、四芯绞合，等。有无护套，有无屏蔽均可。
【FEATURES/ 产品特性】
----------------------------------------------------------------------------------------------------------------------
- -90 ~ +200°C/ 长期工作温度：-90 ~ +200°C
- LIGHT WEIGHT/ 薄壁轻量型
- VOLTAGE RATING 600V AC/ 交流600伏额定电压
- SILVER PLATED COPPER CONDUCTOR/ 高导镀银铜丝导体
- INCREASED CUT-THROUGH RESISTANCE/ 耐穿透
- INCREASED ABRASION RESISTANCE / 耐刮擦
- ARC TRACKING RESISTANT/ 耐电弧
- MOULD AND FUNGUS RESISTANT/ 防霉抗真菌
- VERY GOOD RESISTANCE TO AIRCRAFT FLUIDS/ 优良的航空煤油耐受性
【SPECIFICATION/ 规格参数】
----------------------------------------------------------------------------------------------------------------------
| Part Number 产品编码 |
AWG 美规线号 |
CONSTRUCTION 导体结构 (NB × ∅ mm ) |
NOMNAL ∅ 标称直径 (mm) |
NOMNAL AREA 截面积 ( mm2) |
NOMNAL RESISTANCE 标称直流电阻 ( ohm/km) |
NOMNAL ∅ 完成外径 (mm) |
APPROX. WEIGHT 电线重量 (g/m) |
|---|---|---|---|---|---|---|---|
| TH-2801 | 28 | 1/0.320 | 0.320 | 0.081 | 21 | 0.80 | 1.9 |
| TH-2807 | 28 | 7/0.127 | 0.381 | 0.088 | 20 | 0.86 | 2.0 |
| TH-2601 | 26 | 1/0.403 | 0.403 | 0.13 | 13 | 0.89 | 2.79 |
| TH-2619 | 26 | 19/0.102 | 0.504 | 0.15 | 12 | 0.99 | 2.85 |
| TH-2401 | 24 | 1/0.510 | 0.510 | 0.21 | 8.5 | 1.00 | 3.70 |
| TH-2419 | 24 | 19/0.127 | 0.634 | 0.24 | 7.5 | 1.11 | 3.87 |
| TH-2201 | 22 | 1/0.644 | 0.644 | 0.33 | 5.3 | 1.22 | 5.32 |
| TH-2219 | 22 | 19/0.160 | 0.800 | 0.38 | 4.7 | 1.27 | 5.44 |
| TH-2001 | 20 | 1/0.812 | 0.812 | 0.52 | 3.3 | 1.30 | 7.92 |
| TH-2019 | 20 | 19/0.203 | 1.009 | 0.62 | 2.9 | 1.49 | 8.03 |
| TH-1819 | 18 | 19/0.254 | 1.269 | 0.96 | 1.9 | 1.75 | 11.96 |
| TH-1619 | 16 | 19/0.300 | 1.500 | 1.34 | 1.3 | 1.91 | 14.68 |
| TH-1419 | 14 | 19/0.360 | 1.803 | 1.94 | 0.92 | 2.31 | 22.13 |
| TH-1237 | 12 | 37/0.320 | 2.220 | 2.97 | 0.60 | 2.81 | 34.19 |
| TH-1037 | 10 | 37/0.405 | 2.800 | 4.74 | 0.39 | 3.54 | 52.32 |
注：更多其他规格，或特殊定制产品请来电咨询
